Reference Guide

Complete Size & Grading Guide

Find the right dimensions for your packaging needs. This comprehensive guide covers standard sizes for gaylord boxes, pallets, IBC tanks, and common quality grades.

๐Ÿ“25Sizes Listed
๐Ÿ“ฆ3Product Types
โœ…3Quality Grades
๐Ÿ“FreeQuote Requests

Need Help Choosing?

Tell us your requirements and we'll share them with a partner supplier who can suggest the right size and grade.

Format: (XXX) XXX-XXXX
US ZIP code (5 digits)

By submitting this form, you agree to our privacy policy. We'll never share your information.

๐Ÿ“

Measure Accurately

Always measure interior dimensions and account for product clearance needs.

โš–๏ธ

Know Your Load

Calculate total weight including packaging to select appropriate capacity.

๐Ÿ“ฆ

Consider Stacking

Factor in stacking requirements when selecting wall thickness and grade.

๐Ÿ”„

Plan for Reuse

Higher grades last longer if you plan to reuse packaging multiple times.

Gaylord Box Sizes

Standard dimensions for bulk containers - availability varies by partner supplier

LengthWidthHeight

Understanding Gaylord Dimensions

Gaylord boxes are measured by Length x Width x Height in inches. The most common size (48" x 40" x 36") fits standard pallets and offers approximately 40 cubic feet of storage.

Wall thickness varies by construction: 4-wall gaylords are suitable for lighter loads, while 5-wall and triple-wall options handle heavier materials.

โ–ข
4-WallUp to 1,500 lbs
โ–ฃ
5-WallUp to 2,500 lbs
โ–ค
Triple Wall3,000+ lbs
Dimensions (L x W x H)VolumeWeight CapacityWall TypeBest For
48" x 40" x 36"Popular40 cu ft2,000 lbs4-wall, 5-wallGeneral purpose, most common size
48" x 40" x 48"Popular53 cu ft2,500 lbs5-wall, TripleHeavy materials, manufacturing
48" x 40" x 24"27 cu ft1,500 lbs4-wallLighter loads, limited height
48" x 45" x 34"42 cu ft2,200 lbs5-wallAutomotive parts
40" x 48" x 28"31 cu ft1,800 lbs4-wallReversed orientation needs
58" x 42" x 45"63 cu ft3,000 lbsTriple wallOversized items, bulk materials
36" x 36" x 36"27 cu ft1,500 lbs4-wallSquare footprint needs
44" x 44" x 44"48 cu ft2,200 lbs5-wallCubic storage requirements
48" x 40" x 60"67 cu ft2,800 lbsTriple wallExtra tall applications
32" x 32" x 32"19 cu ft1,200 lbs4-wallSmall parts, limited space

Pallet Sizes

Standard dimensions for wood and plastic pallets

Understanding Pallet Sizes

Pallet dimensions are expressed as Length x Width in inches. The 48" x 40" GMA pallet is the most common in North America, used by the grocery and manufacturing industries.

Entry type indicates forklift accessibility: 4-way pallets can be accessed from all four sides, while 2-way pallets only from two sides.

โ†‘โ†โ†’โ†“
4-Way Entry
โ†โ†’
2-Way Entry
DimensionsNameEntryLoad CapacityIndustries
48" x 40"PopularGMA/Grocery4-way2,500 lbsGrocery, Manufacturing, General
42" x 42"PopularTelecom4-way2,200 lbsTelecom, Paint, Coatings
48" x 48"Drum4-way2,800 lbsChemical, Drum Storage
48" x 42"Chemical4-way2,600 lbsChemical, Industrial
40" x 40"Dairy4-way2,000 lbsDairy, Food Processing
48" x 36"Beverage4-way2,200 lbsBeverage, Distribution
36" x 36"Small4-way1,500 lbsRetail, Small Storage
48" x 20"Half2-way1,200 lbsRetail, Display
44" x 44"Export4-way2,400 lbsExport, International
37" x 37"Military4-way2,000 lbsMilitary, Aerospace

IBC Tank Sizes

Standard capacities for intermediate bulk containers

Understanding IBC Capacities

IBC tanks are measured by liquid capacity in gallons or liters. The 275-gallon and 330-gallon sizes are most common, fitting standard pallet footprints for easy handling.

All IBCs feature a cage (usually steel) surrounding a plastic bottle (HDPE), mounted on an integrated pallet base for forklift handling.

๐Ÿ›ก๏ธSteel cage protection
๐ŸงชHDPE inner bottle
๐Ÿ”งTop fill / bottom drain
๐ŸššForklift-ready base
CapacityDimensions (L x W x H)MetricEmpty WeightBest For
275 GallonPopular48" x 40" x 46"1,040 L~130 lbsStandard liquid storage, chemicals
330 GallonPopular48" x 40" x 53"1,250 L~145 lbsBulk liquids, food ingredients
550 Gallon48" x 48" x 67"2,080 L~200 lbsLarge volume storage
264 Gallon48" x 40" x 44"1,000 L~125 lbsMetric standard applications
120 Gallon40" x 32" x 38"454 L~85 lbsSmall volume needs

Quality Grading System

Understanding common product grades helps you make the best choice for your needs

A
Premium GradeLike-new condition with minimal wear
Price Range:Highest of the used grades
  • Excellent condition, minimal wear
  • Light previous use
  • Clean, presentable appearance
  • Suitable for retail or customer-facing
  • Best for food-adjacent applications
  • Highest structural integrity
  • No major repairs needed
Recommended for:

Food & beverage, pharmaceutical, retail display

B
Standard GradeGood condition with normal wear signs
Price Range:Mid-range
  • Good condition with normal wear
  • Fully functional and reliable
  • May have minor cosmetic marks
  • Best value for most applications
  • Ideal for industrial use
  • Structurally sound
  • Minor repairs may be present
Recommended for:

Manufacturing, logistics, warehouse, general industrial

C
Economy GradeFunctional with visible wear
Price Range:Lowest
  • Functional with visible wear
  • May have stains or markings
  • Structurally sound for intended use
  • Most budget-friendly option
  • Great for internal/warehouse use
  • Suitable for recycling collection
  • May have repairs visible
Recommended for:

Recycling, waste management, internal storage, short-term use

Quick Comparison

Grade AGrade BGrade C
ConditionLike newGoodFunctional
AppearanceExcellentMinor wearVisible wear
PriceHighestMid-rangeLowest
Best UseCustomer-facingIndustrialInternal

Product Size Comparison

Compare dimensions across different product types

ProductDimensionsCapacityBest ForPallet Fit
Standard Gaylord48" x 40" x 36"40 cu ft / 2,000 lbsGeneral bulk storageGMA 48x40
Tall Gaylord48" x 40" x 48"53 cu ft / 2,500 lbsMaximum volumeGMA 48x40
275 Gal IBC48" x 40" x 46"275 gal / 2,200 lbsLiquid storageIntegrated base
330 Gal IBC48" x 40" x 53"330 gal / 2,750 lbsBulk liquid storageIntegrated base

Sizing Help

Not sure which size or grade is right for your application? Include your product dimensions, weights, and storage conditions in a quote request and we'll share it with partner suppliers who can suggest a good fit.

  • Free to request a quote
  • Include product weights and dimensions
  • Custom sizes available through partner suppliers
  • Ask suppliers about samples
Get Sizing Advice

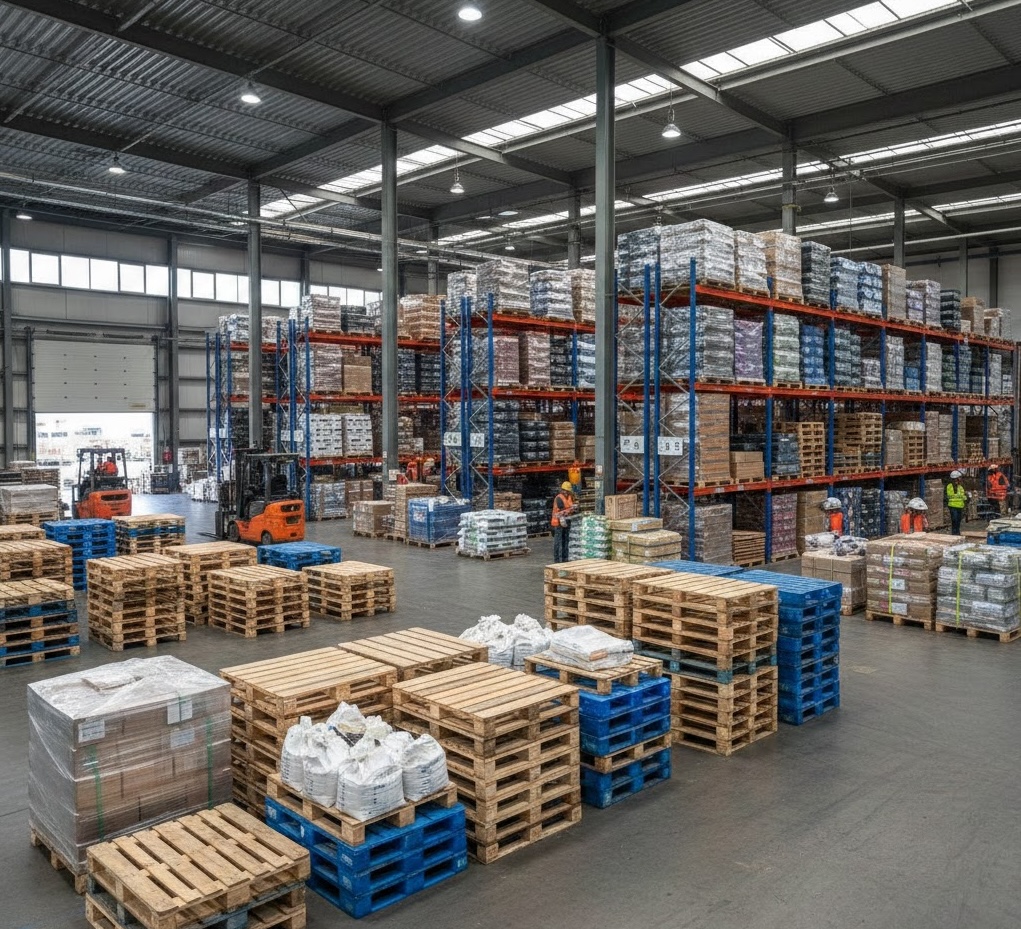

Stacked pallets in various sizes

Size Guide FAQ

Common questions about sizing and selection

Need Custom Sizes?

Partner suppliers in our network can source packaging to your specifications
